The faulty distribution system can lead. Balanced three-phase voltages Three sinusoidal voltages of the same amplitude frequency but differing by 120 phase difference with one another. Single phase apparent power S 1ph VA. Each transmission line of the three-wire has an impedance of 40 i 2002. Problem Sheet 2 3PS ELEC209 Problem Sheet 2. A balanced three-phase voltage or current is one in which the size of each phase is the same and the phase angles of the three phases differ from each other by 120 degrees. Three phase Balanced System As we know in 3 phase system phase voltages or currents are displaced from each other by 120 deg.

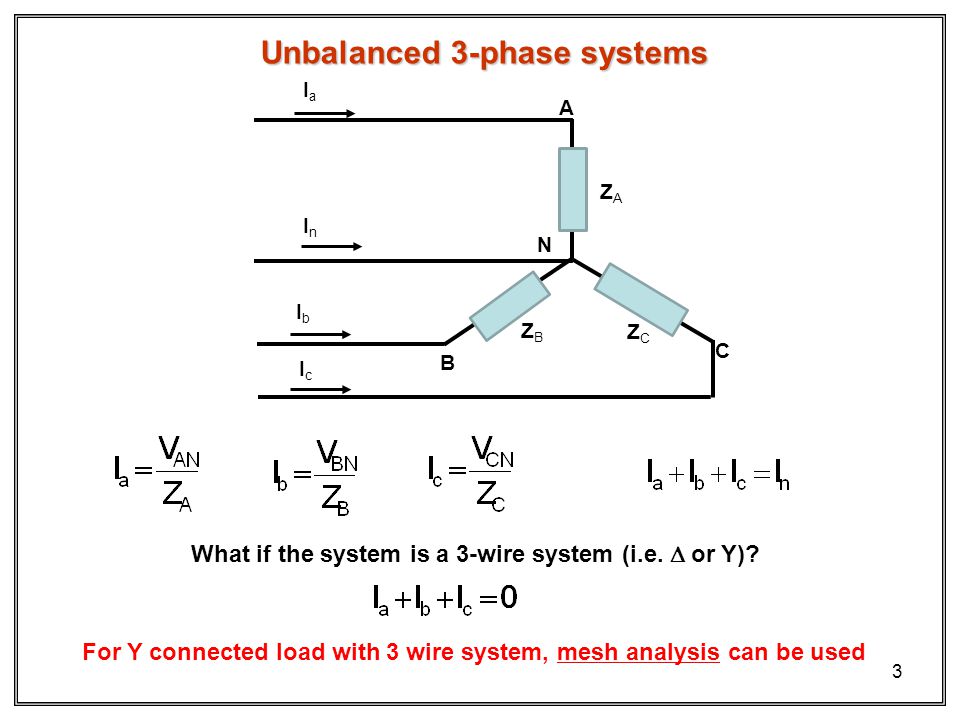

An unbalanced 3 phase load is one in which the load is not equally distributed over all the three phases.

These 3 phases has the same value for current and volts with one twenty-degree phase change. A balanced three-phase voltage or current is one in which the size of each phase is the same and the phase angles of the three phases differ from each other by 120 degrees. Phase voltage refers to the voltage measured across any one component source winding or load impedance in a balanced three-phase source or load. We may analyze one phase to determine its current and infer the cu rrents in the other phases based on a. In other words the current in each conductor is equal in magnitude to the sum of the currents in the other two but with the opposite sign. I a I b I c 0 Balanced Three Phase Circuits-300-200-100 00 100 200 00 20 40 60 80 100 120 140 160 180 200 Time msec 300 a b c Tan-1 X R -5313 o I a I b I c 0 Phase Currents Amp V a t V max cos wt I a t V c t V.

Power In Balanced 3 Phase Loads Inst Tools

Three phase balanced system. The red green and blue phase colors are just for demonstration and dont follow any standard. The variation of two wattmeter readi. The line voltage at the generator is 16 kV and the total power delivered to the load is 1200 kW at 80 A.

P 1 p h P 3. This Hindi script video describe Measurement of Power and Power Factor in three phase AC system by Two Wattmeter Method. V b t lags v a t by 120.

In a three-phase system feeding a balanced and linear load the sum of the instantaneous currents of the three conductors is zero. With the above circuit the line voltage is roughly 208 volts. Due to the same values for phases it is easy to make a design or line of the system for three phases.

It is basically an AC system composed of a certain number of single-phase AC. 2nd Semester Three Phase Balanced System Engr. Since the phase impedances of balanced wye or delta loads contain equal currents the phase power is one-third of the total power.

I S 1 p h V L N P 3 p f 3 V L L. A balanced three-phase network is one in which the impedances in the three phases are identical. In any balanced three-phase system balanced voltages balanced line and load impedances the resulting currents are balanced.

These 3 phases has the same value for current and volts with one twenty-degree phase change. Three phase Balanced System As we know in 3 phase system phase voltages or currents are displaced from each other by 120 deg. The 3 phase system is divided mainly into two types.

So overall in conclusion the three phase system will have better and higher efficiency compared to the single phase system. Thus there is no real need to analyze all three phases.
